Velo Orange 50.4 BCD Cranks Mk II

While looking for lower gearing I was searching for a crank that would take smaller chainrings than my current 110 BCD compact double. Compact doubles usually take 34 teeth for the smallest ring. There are some mountain bike doubles available that go smaller, but they come stock with much smaller rings and I did not feel like replacing rings. The other option is to use a triple crank, but only use two of the spots, with the third left unused.

At the time, I only knew of Sugino, TA, Rene Herse, White Industries and Velo Orange cranks that would fulfill my criteria. Pricewise, the choice was clear: Velo Orange (VO) was at least $150 less than the others. Especially since when I was choosing them, I had access to them at wholesale prices. That access was unavailable when it came time to purchase because the company I work for is disorganized and incompetent, so I ended up paying retail. Afterwards, I also found the IRD Defiant Wide Compact cranks which are similar in price and features to the VO cranks. They use the more commonly available 94 BCD rings, instead of the less common VO/TA chainrings. See the bottom of the post for more comparisons.

Upon installation (greasing the bottom bracket spindle) it quickly became clear that one of the chainring bolt spacers was missing. The bolt that it was supposed to be on was still tightened, causing the inner ring to dive too close to the outer ring for one portion of the rotation. In this state, it was unusable as the chain would get jammed against the big ring.

The spacer in question, missing from another position on the crank.
My temporary solution: 4 small spacers to replace one large one.
I contacted the seller and they contacted VO and got me a replacement spacer and chainring bolt. The extra chainring bolt may come in handy since these aren't the same size as standard chainring bolts.

Standard chainring bolt on left, 50.4 BCD bolt on right
They also include very nice aluminum bolt covers (on right in photo below). Unfortunately, one of the crank bolts had a built in flange that was slightly off-center. With the tight fit of the cover over the bolt, I decided not to install it and risk damaging the extractor threads, I also decided not to go through the trouble of filing off the offending part of the crank bolt. I had an extra bolt cover from some very old cranks (on left in photo), but decided not to use it since I only had one. In any case, I didn't see any reason to put a cover over the bolt, it would just require one more tool for removal.


Cranks, minus crank bolt cover.
The recommended bottom bracket length is 118mm to give a chainline of 43.5, the standard for road doubles. I decided to go with a 115mm bottom bracket to keep the q-factor low (143mm w/ 115mm BB). The inside of the arms are 120mm apart at the ends, you can use that info to measure your chainstays to see if you need a longer bottom bracket for clearance reasons. I also figured since I wanted to use the entire cassette with the large 46 tooth ring (42 to 92 gear inches), putting the large ring a little closer to the frame would minimize the chain angle when using the large cogs on the cassette.

With a 115mm bottom bracket the measured chainline is 42.5mm (measured at the midpoint between the two rings) and rear cassette has a chainline of 42mm on a 130mm hub. When using the small 30 tooth ring, the chain starts to catch on the ramps and pins of the large ring when using the smallest cogs on the cassette. This can lead to severe chain suck and a broken derailer, so I need make sure I don't use those combinations. I may make a little indent on my barend shifter so I know when to stop downshifting in the small ring. This is a problem that is possible on other compact doubles, though it is a non-issue with an unramped large ring like I was using previously.

The gear range is what I was looking for, and it that respect, it gets the job done. My gear range is 27-93 gear inches using a 13-30 cassette, enough for everything I'm using it for, unless I start doing camping trips with it. The chart below (created using a wheel size 4 mm smaller than mine, so not perfect) shows the useable gears, good range in the big ring with a two gear overlap in the small ring.



The smallest chainrings available are 26 teeth. The 50.4 BCD designation is misleading, since the small ring mounts to the large ring, not to the crank arm spider. The small chainrings use a 6 bolt 80mm BCD pattern. To compare, the Rene Herse cranks use a larger BCD spider (70mm) but can mount smaller rings (24 teeth) because both rings are mounting to the same crank arm spider.

I rode it for a while until finally replacing the missing spacer. There was some lateral oscillation on the big and small rings. After a little internet research (thanks Sheldon and Jan) I took the rings off to check the spider. The video below shows that two of the spider arms are closer to the frame than the others. They disturb the zip tie I attached to the frame as reference. They are about .5-.75mm out of alignment, which is magnified at the chainring.  It may take a few viewings to see the arms in question.


I was able to straighten the offending arms with a 12" adjustable wrench. I don't recommend doing this unless you have a very good feel for the elasticity of metal. You need to be able to feel juuuust when it starts to deform, not an easy task when you're using a 12" lever. After doing this, there was one arm still slightly out of alignment (perhaps .1-.25mm), but it was so difficult to adjust the zip tie to get it to hit only one arm I decided to leave them alone.

After reinstalling the chainrings, they were much better, within 1mm at the edge of the chainring.

Here's a table comparing the Velo Orange and IRD cranksets

Velo Orange Grand Cru 50.4IRD Defiant Wide Compact
Price
$200$199
Stock Chainrings
46/3046/30
BCD
50.4 outer/80 inner94
Smallest ring
2629
Bottom Bracket
118118
q-factor
149152
Notes
uses non-standard chainring bolts

Saturday, April 18, 2015

15 miles on the...


Oscar and I took a ride out the C&O Canal yesterday as a test run before trying to ride all the way out to Swain's Lock to go camping along the Potomac. We made it just past the Chain Bridge before we decided to do some exploring.



By exploring, we mean "getting so wet, he rode home naked."

On the way back we decided to listen to Erie Canal by Bruce Springsteen and Oscar made up appropriate hand gestures for the various parts of the song..."low bridge, we're coming to a town."




Part II
I took my bike on the towpath the next day for a fast-ish ride and explored a little of the other things available near the path. Like a kayak course...
 ...hidden down an innocuous sidepath...
 And some singletrack, which was fine on my bike...


and I had to remember to capture lots of insect specimens for Oscar. Luckily my hairy sunscreened arms were perfect bug transport.


Sunday, April 5, 2015

Velo Orange Grand Cru Zeste Brakes Review

I've been struggling to find cantilever brakes strong enough to satisfy my needs. The very rainy Severna Park 200k ride demonstrated that a few hours of rain, road oil and grit can turn adequate brakes into non-stoppers very quickly. After way more research than I thought possible on the subject of cantilever brakes, I got the Velo Orange Grand Cru Zeste brakes. I figured the longer arms plus the low profile should give me the most stopping power available from a cantilever brake.

While researching cantilever brakes, I relied mostly on this mechanical analysis from Circle A Cycles. I also read Sheldon Brown's article on cantilever geometry, but I found it oversimplified things and left out a lot of details. I did not completely verify the math in the Circle A Cycles article, but I will trust the resulting equations. Namely, the equation relating mechanical advantage (MA) to yoke height (footnote 8 on page 3, his equation uses degrees, mine uses radians).


For a given bike, PO is fixed at half the distance between the cantilever bosses, and DO is the vertical distance from the cantilever boss to the middle of the rim braking surface. The variables are PA, the distance between the cantilever post (P) and the cable anchor point (A), YO, the vertical distance from the cantilever boss to the yoke, and 'a', the cantilever angle, the angle from vertical of the line PA. This angle is measured differently than in Sheldon's analysis, where it is the included angle between the A, P, and the rim surface.

Circle A Cycles diagram. Cantilever Angle is APZ (not APR as in Sheldon's).


Sheldon's Diagram. Cantilever Angle is angle APS.
The equation is far from elegant, but it is easy to see that lengthening the arm of the cantilever brake will increase the mechanical advantage. And it doesn't take much, if DO=24, PO=44 (in mm), and a=.436 rads (25 degrees), then a 10% increase in the arm length (PA) leads to a 30% increase in MA. If your canti bosses are higher than normal and DO is smaller, so that the pads are in the lower end of the adjustment range, the MA can be increased 15-25% over pads at the upper end of the adjustment range.

For reference here is a list of a few cantilever brakes and their arm length (PA, pivot to cable anchor distance, measured 'as the crow flies'):


Brake NameArm Length (PA) in mm'a' angle (approx)
Velo Orange Zeste
7615
Paul touring
6820
Shimano Non-series
6720
IRD CAFAM I
6730
Avid Shorty Ult
6375 or 30
Tektro Oryx
6030
Paul Neo Retro
4774
Tektro 720
4875

There are threads started every day on how to adjust cantilever brakes, and given that I've used four different sets on my rear brake (Tektro CR720, Shimano non-series low profile, generic low profile, and VO Zeste), here's what you need to know.

  • lower yoke height=more power (but less modulation)
  • medium and wide profile brakes are less sensitive to yoke height, up to a point
  • low profile brakes are sensitive to yoke height throughout the range
This is relatively common knowledge, the part most people don't realize is there is tipping point for wide profile brakes (like Tektro CR720). Lowering the yoke height doesn't make them much more powerful, until you reach a certain point. Then the mechanical advantage skyrockets with each small lowering of the yoke. Perhaps all the people who are satisfied with the CR720's have sufficiently narrow tires or other frame distances that allow them to have a lower yoke height and thus higher than normal mechanical advantage. It's also possible that different levers have sufficiently different mechanical advantages (while still being 'short pull'), that the 720's can perform well. TRP makes two versions of the mini-V brakes with different length arms (and thus different mechanical advantages) for Shimano/Campy and SRAM brake levers, respectively.

Enough with the engineering, onto the review.

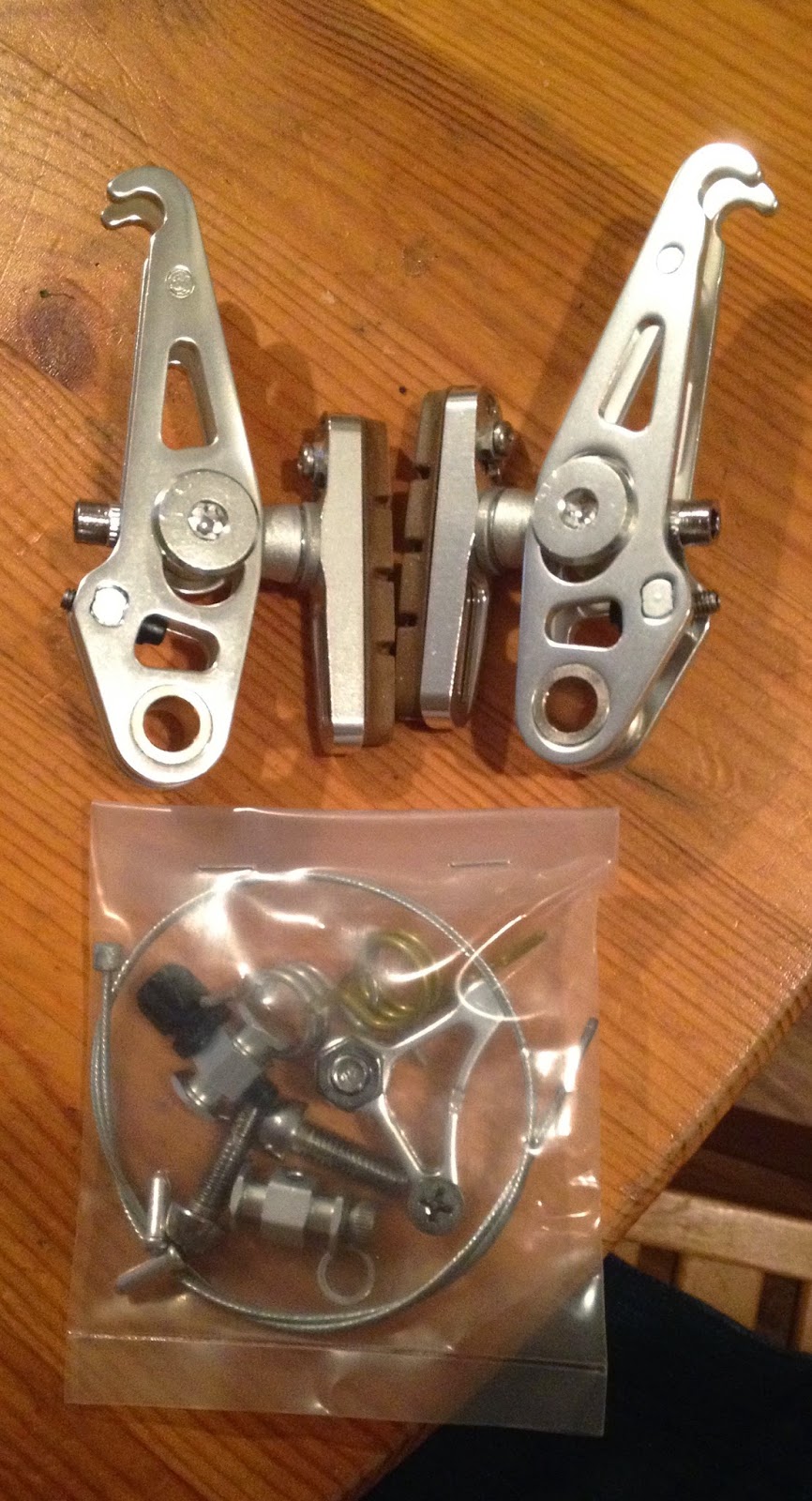

Comes with two brakesets, enough for one bike. All necessary hardware? Yes. Instructions? No, none at all. Tools necessary: 2, 2.5, 3, 4, 5 mm allen keys, 10 and 13mm wrenches, phillips screwdriver.
